A Vision Transformer can be more accurate than a CNN, yet it can also be the wrong choice if your data is small or your inputs drift in the world. That's the part most explainers leave out, even though the field's own scaling results and stability tests make it impossible to ignore. The vision transformer architecture is powerful, but its success depends on data scale, pretraining, and how badly your production inputs move away from the training set (ViT scaling results and model sizes, ImageNet scaling and transfer findings).

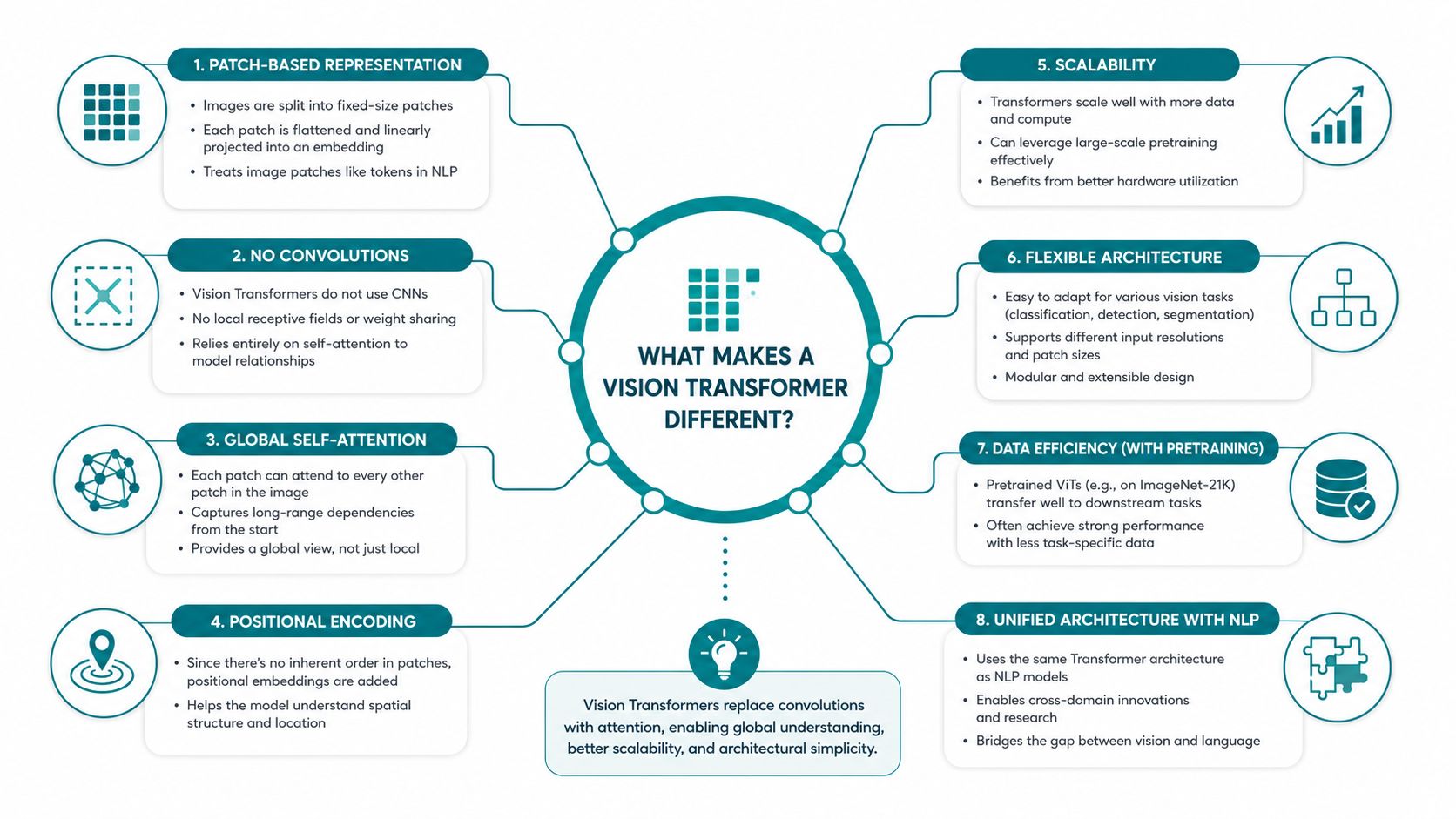

What Makes a Vision Transformer Different

The cleanest way to understand a ViT is to stop thinking of an image as a grid and start treating it as a sequence. That sounds strange at first, but it's the same mental move language models made years ago, words became tokens, and tokens became the unit of reasoning. ViT does the same with image patches, which is why it felt like a category shift, not a small CNN upgrade (ViT architecture overview).

From pixels to tokens

Take a 224 x 224 image and split it into 16 x 16 patches. You get 14 x 14 = 196 patches, and each patch is flattened before it's projected into an embedding vector. That one move, patch as token, is the heart of the model, because it lets the transformer read an image the same way it reads a sentence, one unit at a time (ViT patching and tokenization).

The second design choice matters just as much. Each flattened patch goes through a learned linear projection, which means the model isn't just resizing pixels, it's learning how to translate raw image content into a representation the transformer can work with. That's the bridge between visual data and sequence modeling, and it's why the whole architecture feels familiar to teams that already understand NLP transformers.

Practical rule: if someone says a ViT is “just attention on top of CNNs,” they're missing the point. The model is built around tokens from the start, not around convolutions that are later decorated with attention.

If you're mapping this to an applied workflow, the key question isn't “does it use attention.” It's “can my team afford to learn relationships across the whole image instead of relying on hand-built locality bias.” That's where the architecture starts to matter in product decisions, not just papers, and it's why many teams pair a ViT understanding with broader computer vision planning such as computer vision solution design.

The Building Blocks Inside a ViT Encoder

A ViT encoder looks abstract until you name the moving parts in order. Once you do, it becomes mechanical. The easiest analogy is a classroom, each patch is a student, and the model is trying to let every student contribute to a shared answer without losing track of who sat where.

The five pieces that actually matter

First comes patch embedding, which turns each patch into a vector. Then the model adds a learnable class token, often written as [CLS], which acts like the spokesperson for the whole image. After that, positional encoding tells the model where each patch came from, because attention alone does not preserve order.

The transformer cannot infer spatial layout from token order unless you give it position information.

Next is multi-head self-attention. In classroom terms, every student can glance at every other student's notes and decide what matters. That's the distinctive power of ViT, because the model can connect distant parts of the image early, instead of waiting for deep convolutional layers to expand a receptive field. Finally, a small MLP head turns the class token into the final prediction.

Why training stability matters

There's one implementation detail that teams often ignore until training gets flaky, LayerNorm before the block, or Pre-LN, tends to make optimization steadier than placing normalization after the block. You don't need to memorize the formula to care about it. In production training, stability affects whether the model converges predictably or turns into a tuning exercise that burns engineering time.

A simple forward pass looks like this:

1. Split image into patches.
2. Project each patch into an embedding.
3. Add the class token.
4. Add positional encodings.
5. Run the sequence through repeated attention and MLP blocks.
6. Read the class token through a classification head.

If that sequence feels overly simple, that's the point. The complexity isn't in the plumbing, it's in whether the model gets enough data and signal to learn useful relationships. For training discipline around these choices, teams often pair architecture work with sound practice in neural network training.

DeiT, Swin, and Hybrid Variants Compared

The original ViT proved the core idea, but product teams quickly ran into different bottlenecks than the research papers emphasized. The variants that matter in practice each target a different failure mode, and each one shows where the plain encoder stack starts to strain.

Three families, three different problems

DeiT focused on data efficiency. The problem it addressed was straightforward, the base ViT needed more data and pretraining than many teams could justify. DeiT became the choice for teams that wanted transformer-style modeling without depending on the massive dataset regime that put early ViTs out of reach.

Swin tackled hierarchy and dense prediction. Its shifted-window design fits tasks like detection and segmentation better, because local structure still matters and a fully global attention stack over every token at every stage is expensive. Swin is the more natural fit when the output is not a single label, but a spatial map or a set of boxes.

Hybrid ViT served as the bridge for teams with existing CNN assets. If you already have pretrained convolutional weights, a hybrid approach reduces warm-start friction and lets you reuse infrastructure instead of rebuilding the pipeline around pure token processing. That matters in real organizations, because platform maturity often beats architectural purity.

Family	Design Intent	Best-Fit Task	Key Trade-off
ViT	Pure token-based image modeling	Large-scale classification	Needs strong data and pretraining
DeiT	Make transformer training more data-efficient	Classification with tighter data budgets	Still benefits from careful training setup
Swin	Add hierarchy for dense vision tasks	Detection and segmentation	More complex structure than plain ViT
Hybrid ViT	Combine convolutional priors with transformer attention	Teams migrating from CNN pipelines	Less clean architectural simplicity

Pick the family based on the task shape first, then worry about benchmark rank second.

The practical read is direct. If your task is image-level classification and you have enough pretraining data, ViT or DeiT can make sense. If you are doing dense prediction, Swin is often the better fit because it preserves locality while still using attention. If your team already works inside a CNN stack, hybrid models can reduce adoption friction without forcing a hard reset on tooling or weights.

That choice matters more than the label on the slide. A model can look elegant in a diagram and still be the wrong fit if it ignores the data regime, output shape, or deployment path the product needs.

Data Scale and Pretraining Requirements

ViTs reward scale in a way that catches small teams off guard. A model with 2 billion parameters reached 90.45% top-1 accuracy on ImageNet, and 84.86% top-1 accuracy in a 10-shot transfer setting. Earlier results pretrained on JFT-300M reported 88.36% on ImageNet, 99.50% on CIFAR-10, 94.55% on CIFAR-100, and 77.16% on Oxford-IIIT Pets. The pattern is consistent. As data and pretraining scale increase, ViTs get stronger, and they transfer well once they have learned broad visual structure.

A useful mental model is a library, not a toolbox. A CNN starts with strong assumptions about edges and locality, while a ViT has to learn more of that structure from data. With enough pretraining, that flexibility becomes an advantage. Without it, the model can spend too much of its capacity learning the training set instead of the visual patterns that hold up in new data.

Why small datasets are a bad starting point

A 50k-image internal dataset often will not justify training a ViT from scratch. The issue is not that the architecture is fragile by design, it is that it has fewer built-in shortcuts than a CNN and needs more evidence before it settles on useful features. If the dataset is small, noisy, or narrow, the model can memorize the training set instead of learning features that travel well to new examples.

That is why pretrained weights plus domain fine-tuning is usually the first move. You start with general visual features, then adapt them to your product's labels, lighting, camera setup, or document format. For a product team, that path is usually more practical than trying to prove end-to-end training purity on day one.

The training question is usually not “Can a ViT learn this task?” It is “How much of the visual world has the model already seen before our labels arrive?”

A practical readiness check

Before starting a ViT project, ask four questions:

• Labelled volume: do you have enough annotated examples to support fine-tuning, or are you starting from almost nothing?
• Label noise: are your labels consistent, or will the model learn contradictions?
• Domain gap: does your data look like the pretraining source, or is it visually very different?
• Class balance: are some classes rare enough that the model will struggle to see them often?

If those answers look weak, a CNN baseline or a pretrained hybrid is usually the safer bet. If they look strong, ViT becomes much more attractive, especially when transfer from large-scale pretraining is available. The architecture is not limited to small problems, but it is less forgiving when the data story is weak.

Robustness Beyond Clean Benchmarks

Benchmarks can flatter a ViT. Production can punish it. That's the hard lesson from work on satellite imagery, where ViTs did not outperform a CNN baseline for out-of-distribution detection (OOD robustness result). For teams shipping models into healthcare, retail, or industrial inspection, that distinction matters more than leaderboard polish.

Where the trouble starts

Distribution shift is the quiet problem. Cameras get replaced, lighting changes, packaging changes, patient populations change, and the input distribution slowly drifts away from what the model saw during training. A ViT can look excellent on clean validation data and still miss the moment when the world starts to look different.

That's why the old “global attention equals better performance” story is too simple. Global context helps the model reason across an image, but it doesn't guarantee it knows when it's wrong. OOD detection is a different problem from standard classification, and the satellite result is a useful reminder that architecture choice doesn't erase the need for monitoring and retraining.

If your system has to survive input drift, benchmark accuracy is not the final answer, it's the first screening test.

When a CNN or hybrid is the more honest choice

A CNN can be a better risk-managed option when the environment is narrow, the data regime is modest, and the cost of a miss is high. In those cases, the built-in locality bias can be a feature, not a limitation, because it gives the model a stronger prior about image structure. Hybrid models can also help when you want transformer flexibility without giving up the inductive bias that makes CNNs resilient in some settings.

The decision rule is practical. If the main challenge is semantic reasoning over large, varied image corpora, a ViT may be a good fit. If the main challenge is keeping stable performance while the input distribution moves, you should be much more cautious and treat the model as a monitored system rather than a one-time build.

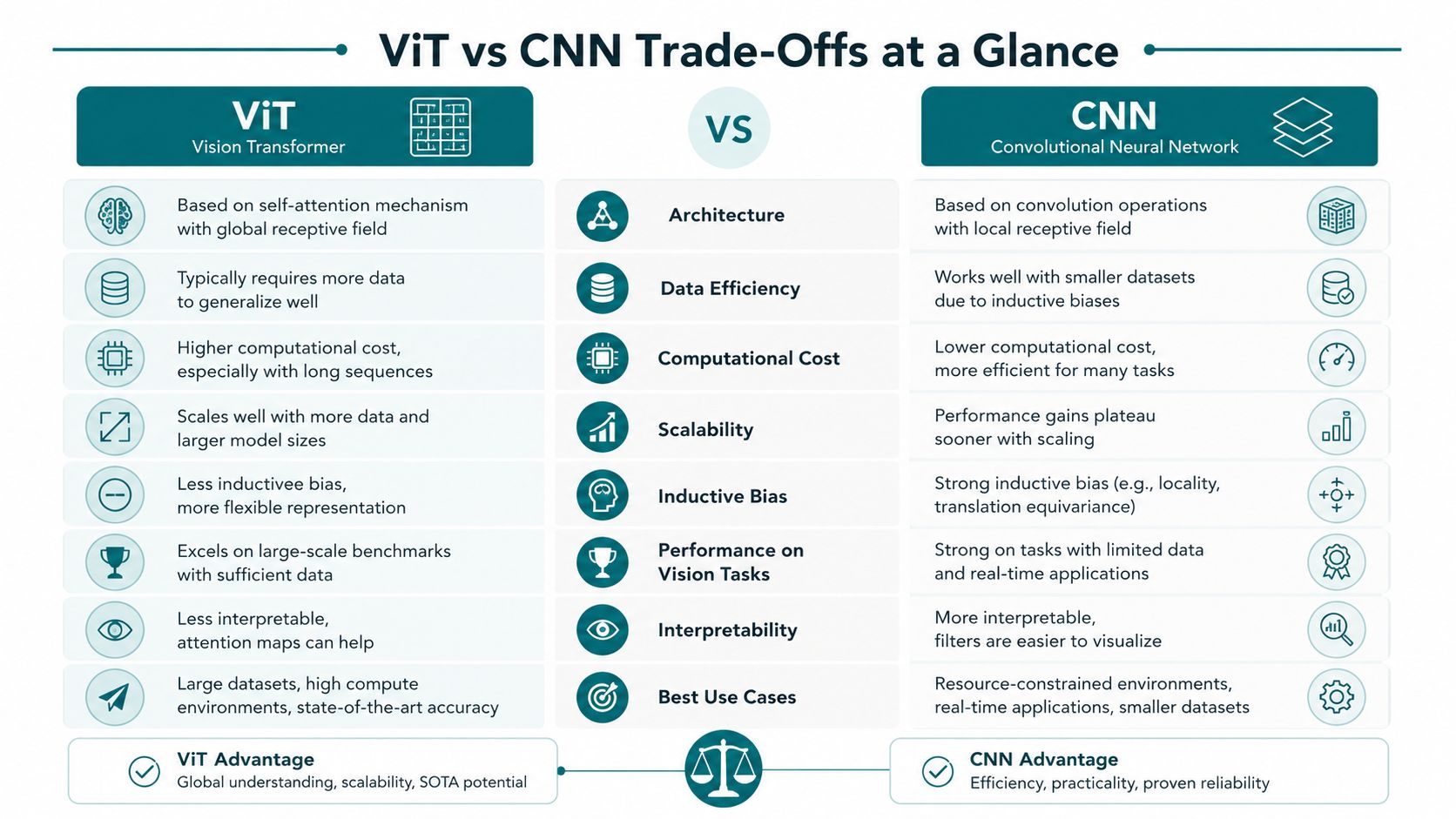

ViT vs CNN Trade-Offs at a Glance

Teams usually ask for a simple winner. The honest answer is that the better model depends on where the risk sits, in data scale, latency, drift, or explainability. Once you frame the choice that way, the comparison gets much cleaner.

The decision matrix

Dimension	ViT	CNN
Accuracy ceiling	Can scale very well with large data and transfer	Strong in smaller-data regimes
Data hunger	Higher	Lower
Latency per image	Often heavier because attention is expensive	Often lighter for many deployment settings
Memory footprint	Can be substantial	Usually easier to fit on constrained hardware
Interpretability	Attention maps can help, but they're not a full explanation	Feature hierarchy is often easier to reason about
Downstream transfer	Very strong when pretrained broadly	Strong, especially with well-established backbones

The useful question is not “which one is better.” It's “which constraint hurts more.” If your team has limited labels and needs a fast first deployment, CNNs still deserve serious consideration. If you have access to pretraining, enough compute, and a task that benefits from global context, ViT becomes more compelling.

For hardware-bound deployments, the serving stack matters just as much as the backbone. If the model needs to run efficiently on constrained infrastructure, teams usually think about acceleration alongside architecture choice, especially in enterprise environments where AI accelerators and deployment constraints shape the build.

Real-World Use Cases in Industry

ViTs become easier to justify when you tie them to a workflow instead of a benchmark. In practice, the best use cases are the ones where global context, layout reasoning, or large-scale pretraining offsets the model's heavier appetite for compute and data.

Industrial inspection and defect finding

In industrial visual inspection, the challenge is often not “is there an object here,” but “does this tiny defect matter in the context of the whole frame.” A crack, misalignment, or contamination issue can span a small area while still depending on surrounding structure. A ViT's attention mechanism can help the model connect distant regions of the image instead of relying only on local texture cues, which is why teams explore it for quality control and inspection pipelines.

The metric that matters here is usually the false-negative rate. Missing a defect is more expensive than flagging a borderline case for review, so the architecture has to support careful recall-oriented tuning. For teams building around automated inspection, it helps to study the production pattern in computer vision automated inspection and classification.

Document vision and KYB workflows

Documents are not just images, they're layouts. A ViT can be a strong fit when the system needs to connect names, addresses, signatures, tables, and headers across the page. CNNs can extract local patterns, but layout-heavy tasks often need longer-range reasoning to connect distant text regions and visual structures.

The metric here is usually cycle time per page or downstream decision latency, because the business value sits in throughput. If the model can reduce manual review without introducing brittle edge cases, it becomes useful in KYB, onboarding, and compliance workflows. The important point is that the model isn't reading text alone, it's reading structure.

Assembly line quality control

On assembly lines, small datasets are common because each product line is narrow and each camera setup is specific. That's where pretrained ViTs can make sense, because broad visual pretraining can be adapted to a more focused in-house task. Teams aren't training from zero, they're borrowing representation power and tuning it for one line, one camera, one failure mode.

The metric that matters is often parts-per-million defect escape, because quality teams care about what gets through, not just what gets detected in a lab. If your workflow already has a strong annotation loop and a defined acceptance threshold, a ViT can be a practical way to raise the quality bar without rebuilding the whole stack.

Deployment, Compression, and Governance

A ViT pilot can look strong in a demo and still fail in production because shrinking the model is harder than the slide deck makes it seem. A 2025 survey frames model compression and acceleration as a major open frontier for vision transformers on the edge, which means the practical challenge is still active, not settled (edge efficiency survey). That matters if the model has to run on mobile devices, embedded hardware, or constrained enterprise environments. For more on edge AI deployment strategies, see edge AI deployment guide.

What production teams need to plan for

The first lever is quantization-aware fine-tuning, so the model learns under the numeric limits it will face at inference time. The second is knowledge distillation, where a larger ViT teaches a smaller backbone that can meet latency targets more comfortably. These are not abstract training tricks, they are the difference between a model that benchmarks well and one that fits a device budget. Teams also need latency-aware serving, because even a strong model can miss its SLA if batching, image preprocessing, or GPU scheduling is sloppy.

Monitoring matters just as much. If inputs drift, the model should be watched for performance degradation, not just uptime. That means versioning, audit trails, and a clear rollback path when a new model behaves worse than the prior one.

In regulated environments, model governance is part of the product, not a separate compliance task.

A sane enterprise checklist includes access control, traceable model versions, drift monitoring, and KPI-linked service commitments. If your organization treats the ViT like a one-off experiment, it will probably stay one. If it is governed like a production system, it can become a durable part of the stack.
